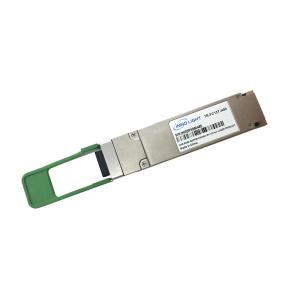

InnoLight TR-FC13T-N00 100Gb/s QSFP28 CWDM4 2km Optical Transceiver

  • 1
  • 2

Brand Name : InnoLight

Model Number : TR-FC13T-N00

Certification : RoHS-6

Place of Origin : Malaysia

MOQ : 1pc

Price : Price is negotiable

Payment Terms : T/T, Paypal、Credit card

Supply Ability : 5000pcs/month

Delivery Time : 3-5 working day

Packaging Details : Anti-boxes，Standard packaging

Data rate : 100Gb/s

Form-Factor : QSFP28

Center Wavelength : 1271, 1291, 1311 and 1331 nm

transmission : Up to 2km

Connector : LC

Lasers : DFB

Maximum power consumption : 3.5W

Operating case temperature : 0 to 70℃

Contact Now

InnoLight TR-FC13T-N00 100Gb/s QSFP28 CWDM4 2km Optical Transceiver

Fiber Type Single mode
Weight 0.06kg
Warranty 1 Year
Tx power -6.5 to + 2.5 dBm
Rx sensitivity -11.5 to + 2.5 dBm
Extinction Ratio 3.5dB
Single Power Supply
3.3V
Applications
Data Center Interconnect

Features of TR-FC13T-N00 QSFP28 100G

  • QSFP28 MSA compliant
  • 4 CWDM lanes MUX/DEMUX design
  • Supports 103.1Gb/s aggregate bit rate
  • 100G CWDM4 MSA Technical Spec Rev1.1
  • Up to 2km transmission on single mode fiber (SMF) with FEC
  • Operating case temperature: 0 to 70oC
  • 4x25G electrical interface (OIF CEI-28G-VSR)
  • Maximum power consumption 3.5W
  • LC duplex connector
  • RoHS compliant
Applications of TR-FC13T-N00 QSFP28 100G
  • Data Center Interconnect
  • 100G Ethernet
  • Infiniband QDR and DDR interconnects
  • Enterprise networking
General Description of TR-FC13T-N00 QSFP28 100G
This TR-FC13T-N00 QSFP28 100G is a transceiver module designed for 2km optical communication applications. The design is compliant to 100GBASE CWDM4 MSA standard.
The module converts 4 inputs channels (ch) of 25Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission.
Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.
Functional Description of TR-FC13T-N00 QSFP28 100G
This product converts the 4-channel 100Gb/s electrical input data into CWDM optical signals (light), by a driven 4-wavelength Distributed Feedback Laser (DFB) array.
The light is combined by the MUX parts as a 100Gb/s data, propagating out of the transmitter module from the SMF.
The receiver module accepts the 100Gb/s CWDM optical signals input, and de-multiplexes it into 4 individual 25Gb/s channels with different wavelength.
Each wavelength light is collected by a discrete photo diode, and then outputted as electric data after amplified by a TIA and a post amplifier.
InnoLight TR-FC13T-N00 100Gb/s QSFP28 CWDM4 2km Optical Transceiver
InnoLight TR-FC13T-N00 100Gb/s QSFP28 CWDM4 2km Optical Transceiver

FAQ

Q1. Are your Optical Transceivers original?

A1.Yes, all our optical transceivers are guaranteed 100% original!

Q2.How do you guarantee the quality of SFP?

A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.

Q3. What is the operating temperature range of TR-FC13T-N00 QSFP28 100G?

A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)

Extended temperature range(EXT): -5 to 85°C(23 to 185°F)

Industrial temperature range(IND): -40 to 85°C(-40 to 185°F)

Storage temperature range: -40 to +85°C(-40 to 185°F)

Q4. What payment terms do you accept?
A4. T/T, Paypal,Credit card.

Q5. What are the trade terms?

A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)

Payment term: Western Union, T/T, Alipay, Escow, Money Gram

Warranty: 1 Year

Warranty: 1 Year
