QSFP-100G-LR4-D Compatible Juniper QSFP28 100G-LR4 Ethernet And OTN Optical Module

Compatible Juniper QSFP-100G-LR4-C 740-061409 QSFP-28, 100G-LR4 Transceiver SMF 10km Optical Module

Part Number 740-073859
Speed100 Gigabit Ethernet
Breakout CapableNo
Transceiver TypeQSFP28
Product TypeOptical Transceiver
ConnectorDuplex LC
Monitoring AvailableYes
Digital Optical MonitoringYes
Standard: 100GBASE-LR4MSA compliance (SFF, for e.g. SFF-8665)
SFF-8636
SFF-8679
OIF CEI-28G-VSR
Optic Type (Commercial Vs Service Provider Grade)SMF
Digital Diagnostic Monitoring
Transceiver Temperature
Transceiver Supply Voltage
Tx Bias Current
Tx output power
Rx received optical power
Signaling rate, each lane25.78125 Gbps +/- 100 ppm
Transmitter fibers2
Transmitter wavelengths (range)
1294.53 nm through 1296.59 nm
1299.02 nm through 1301.09 nm
1303.54 nm through 1305.63 nm
1308.09 nm through 1310.19 nm
Receive lane wavelengths (range)
1294.53 through 1296.59 nm
1299.02 through 1301.09 nm
1303.54 through 1305.63 nm
1308.09 through 1310.19 nm
Transmitter output power, each lane (minimum)–4.3 dBm
Transmitter output power, each lane (maximum)4.5 dBm
Receiver input power, each lane (minimum)-10.6 dBm
Receiver input power, each lane (maximum)4.5 dBm
Receiver sensitivity (OMA), each lane (maximum)-8.6 dBm
Stressed receiver sensitivity (OMA) each lane (maximum)-6.8 dBm
Cable typeSMFCore size/cladding9/125 µm
Distance10 km
Maximum Power consumption (W)4.5 W
Operating Temperature (range)0° C to 70° C
Storage temperature–40° C to 85° C
Typical Weight & Dimensions
Weight: 100 grams
Height: 13.5 mm
Width: 18.4 mm
Depth: 72.4 mm
Standard: OTU4.4 4I1-9D1FMSA compliance (SFF, for e.g. SFF-8665)
SFF-8636
SFF-8679
OIF CEI-28G-VSR
Optic Type (Commercial Vs Service Provider Grade)SMFDigital Diagnostic Monitoring
Transceiver Temperature
Transceiver Supply Voltage
Tx Bias Current
Tx output power
Rx received optical power
Signaling rate, each lane27.9525 Gbps +/- 20 ppm
Transmitter fibers2
Transmitter wavelengths (range)
1294.53 nm through 1296.59 nm
1299.02 nm through 1301.09 nm
1303.54 nm through 1305.63 nm
1308.09 nm through 1310.19 nm
Receive lane wavelengths (range)
1294.53 through 1296.59 nm
1299.02 through 1301.09 nm
1303.54 through 1305.63 nm
1308.09 through 1310.19 nm
Transmitter output power, each lane (minimum)–0.6 dBm
Transmitter output power, each lane (maximum)4.0 dBm
Receiver input power, each lane (minimum)-6.9 dBm
Receiver input power, each lane (maximum)4.0 dBm
Receiver sensitivity (OMA), each lane (maximum)N/AStressed receiver sensitivity (OMA) each lane (maximum)N/A
Cable typeSMF
Core size/cladding9/125 µmDistance10 km
Maximum Power consumption (W)4.5 W
Operating Temperature (range)0° C to 70° C
Storage temperature–40° C to 85° C
Typical Weight & Dimensions
Weight: 100 grams
Height: 13.5 mm
Width: 18.4 mm
Depth: 72.4 mm

Duplex LC QSFP28 100G LR4

Ethernet QSFP28 100G LR4

OTN 100G QSFP28 Module

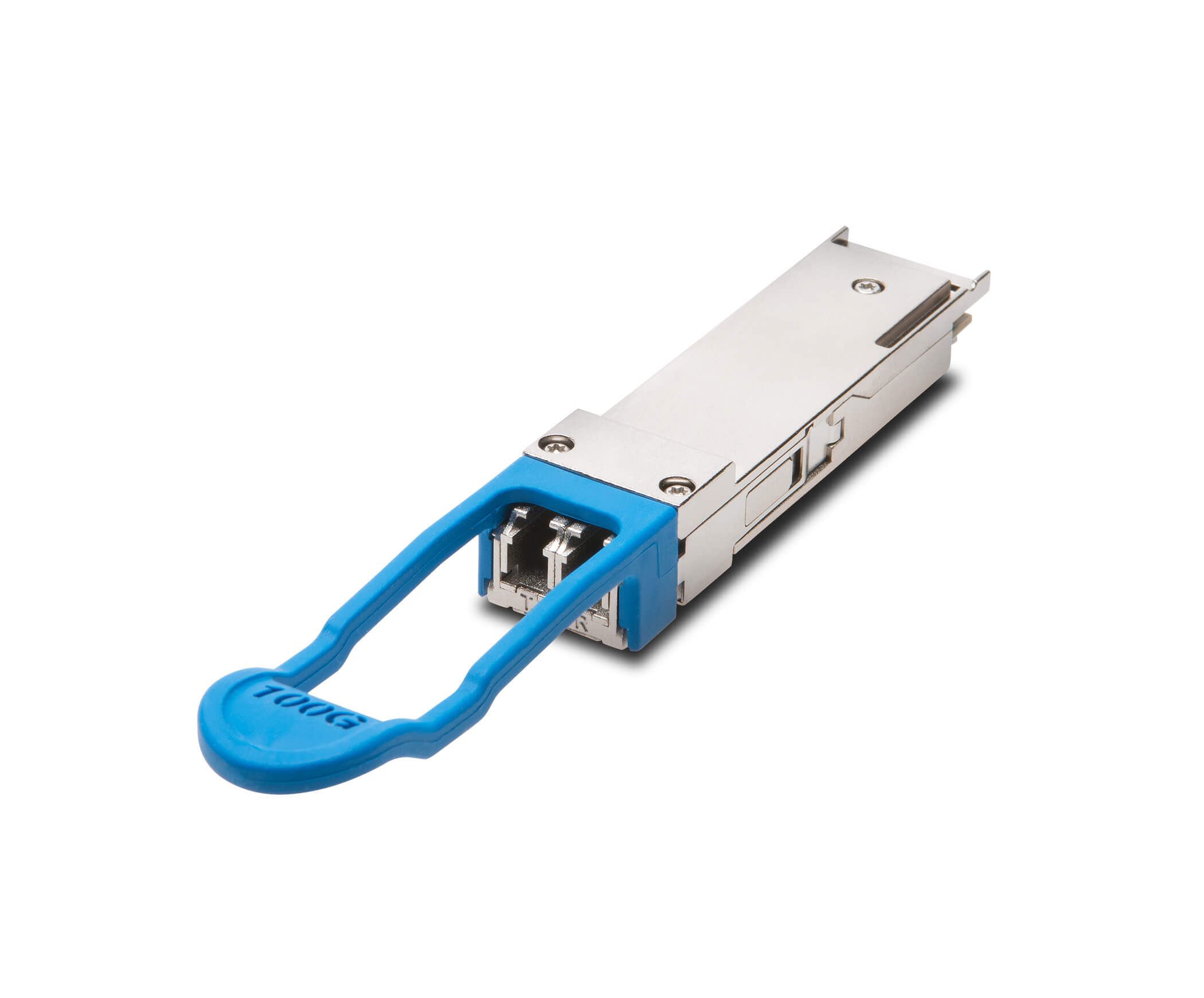

QSFP-100G-LR4-D Compatible Juniper QSFP28 100G-LR4 Ethernet And OTN Optical Module Images
