CWDM4 Compatible Juniper 100G QSFP28 Module Optical 2km 1310nm

Compatible Juniper QSFP-100G-CWDM4-IT Optical Module QSFP28 100G-CWDM4 2km 1310nm

QSFP-100G-CWDM4-IT

Part Number 740-092596
Speed100 Gigabit Ethernet
Breakout Capable No
Transceiver Type QSFP28
Product Type Optical Transceiver
Connector Duplex LC
Monitoring Available Yes
Digital Optical Monitoring Yes
Standard: 100GBASE-CWDM4MSA compliance (SFF, for e.g. SFF-8665)SFF-8636Digital Diagnostic Monitoring
Transceiver Temperature
Transceiver Supply Voltage
Tx Bias Current
Tx output power
Rx received optical power
Signaling rate, each lane25.78125 GBd +/- 100 ppm
Transmitter fibers1Transmitter wavelengths (range)
1264.5 nm to 1277.5 nm
1284.5 nm to 1297.5 nm
1304.5 nm to 1317.5 nm
1324.5 nm to 1337.5 nm
Receive lane wavelengths (range)
1264.5 nm to 1277.5 nm
1284.5 nm to 1297.5 nm
1304.5 nm to 1317.5 nm
1324.5 nm to 1337.5 nm
Transmitter output power, each lane (minimum)-6.5 dBm
Transmitter output power, each lane (maximum)2.5 dBm
Receiver input power, each lane (minimum)-11.5 dBm
Receiver input power, each lane (maximum)2.5 dBm
Receiver sensitivity (OMA), each lane (maximum)2.5 dBm
Stressed receiver sensitivity (OMA) each lane (maximum)-7.3 dBm
Cable typeSMFCore size/cladding9/125 µm
Distance 2 km
Maximum Power consumption (W)4.5 W
Operating Temperature (range)–40° C to 85° C
Storage temperature–40° C to 85° CTypical Weight & Dimensions
Weight: 100 gram
Height: 13.5 mm
Width: 18.4 mm
Depth: 72.4 mm

SMF Cable 100G QSFP28 Module

2km 100G QSFP28 Module

1310nm QSFP28 100G CWDM4

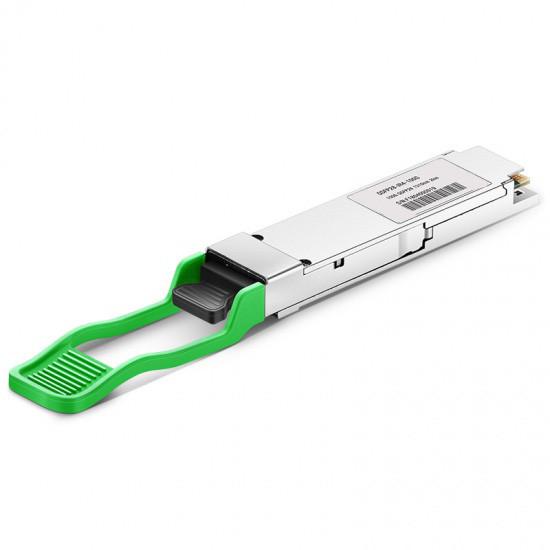

CWDM4 Compatible Juniper 100G QSFP28 Module Optical 2km 1310nm Images
