Finisar FTLX1413M3BCL 10G XFP 1310nm 10km Optical Module
Parameters
| Fiber Type | 10GBASE-LR4Ethernet |
| Connector | LC |
| Lasers and TIA | VCSEL and PIN |
| Tx Power | -5--1 dBm |
| Rx Sensitivity | -11 dBm |
| Extinction Ratio | 9 dbm |
| Power Consumption | 1.5W |
| Single Power Supply | 3.3 V
|
Finisar’s FTLX1413M3BCL Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification1 . They are a true multi-protocol transceiver complying with SONET OC-192 SR-1, SDH STM I64.1, 10-Gigabit Ethernet 10GBASE-LR /LW per IEEE 802.3ae, 10G Fibre Channel 1200-SM-LL-L, 8G Fibre Channel 800-SM-LC-L, 10G CPRI, and ITU-T. G709 OTN/FEC protocols OTU1e, OTU2, and OTU2e. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU3 . See Finisar Application Note AN-2038 for more details4 .
PRODUCT FEATURES
- Supports 8.5Gb/s to 11.32Gb/s bit rates
- Power dissipation <1.5W
- Commercial temperature range: -5°C to 75°C
- RoHS-6 Compliant (lead-free)
- Hot-pluggable XFP footprint
- Single Power supply: 3.3V
- Maximum link length of 10km
- Uncooled 1310nm DFB laser
- No Reference Clock required
- Built-in digital diagnostic functions
APPLICATIONS
- SONET/SDH OC-192 SR-1 ITU G.693, VSR2000-2R1
- 10GBASE-LR /LW 10G Ethernet
- 1200-SM-LL-L 10G Fibre Channel and 800-SM-LC-L 8G Fibre Channel
- ITU G.709 OTN/FEC OTU1e, OTU2, OTU2e
- 10G CPRI
FAQ
1. Are your Optical Transceivers original?
Yes, all our optical transceivers are guaranteed 100% original!
2. What will you do if I found the product has any quality problem?
We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years!
3. What did your company do in terms of quality control?
We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
4. What are the trade terms?
Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Aliexpress Escow, Money Gram
Warranty: 1 Year
5. Do you have compatible ones?
Yes, we have our own brand—Toptrans, including SFP, XFP, SFP+, Bidi in all kinds of specifications.
|
|

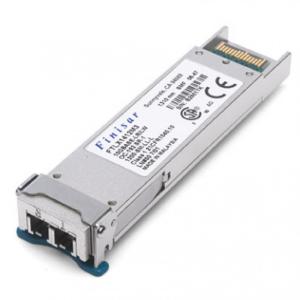

Finisar FTLX1413M3BCL 10G XFP 1310nm 10km Optical Module Images
|
