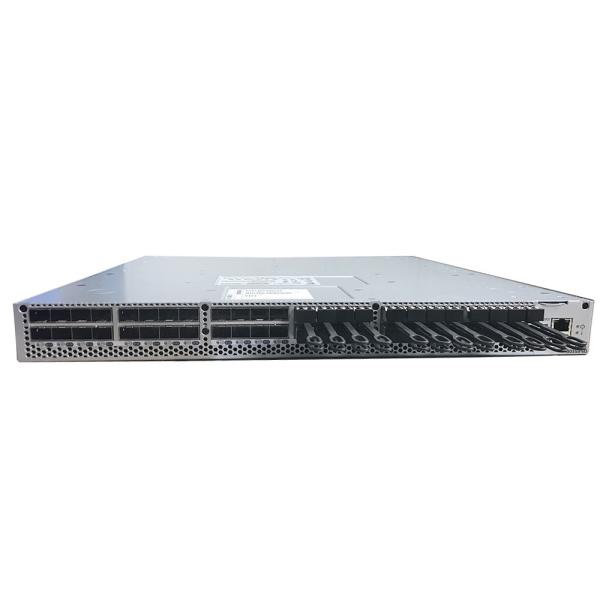

Brocade 6510 BR-6510-24-16G-R Switch 24 Ports 16GB SWL SFPS
Brocade 6510 storage switch for Growing SAN Workloads
Product Description: The Brocade BR-6510-24-16G is the 6510 version with 24 of the available 48 ports active. It works as a foundation for virtualization and private cloud storage, because it can simplify server virtualization and Virtual Desktop Infrastructure and offers high throughput for enterprise-level data centers.
6510 series Switch offers enough speed for hyper-scale fiber channel installations. It provides exceptional price and performance value, combines flexibility, simplicity, and enterprise-class functionality in a 48-port switch for virtualized data centers and private cloud architectures
When space is at a premium, this switch brings high port density and a slim height, enabling the creation of dense fabrics in a relatively small space.
Description Of Brocade 6510 BR-6510-24-16G-R
| Main features | Systems Architecture |
| AC Power consumption | 110 W with all 48 ports populated with16 Gbps SWL optics 72 W for empty chassis with no optics |
| Scalability | Full-fabric architecture with a maximum of 239 switches |
| Certified maximum | 6000 active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics; larger fabrics certified as required |
| Management access | 10/100 Mbps Ethernet (RJ-45), in-band over Fibre Channel, serial port (RJ-45), and one USB port |
| ISL Trunking | Frame-based Trunking with up to eight 16 Gbps ports per ISL trunk; up to 128 Gbps per ISL trunk. Exchange-based load balancing across ISLs with DPS included in Brocade Fabric OS. |
| USB | One USB port for system log file downloads or firmware upgrades |
| Vibration | Operating: 0.5 g sine, 0.4 grms random, 5 Hz to 500 Hz Non-operating: 2.0 g sine, 1.1 grms random, 5 Hz to 500 Hz |
| Power supply | Dual, hot-swappable redundant power supplies with integrated system cooling fans |
HIGHLIGHTS OF Brocade 6510 BR-6510-24-16G-R
• Provides exceptional price/performance value, combining flexibility, simplicity, and enterprise-class functionality in a 48-port switch
• Enables fast, easy, and cost-effective scaling from 24 to 48 ports
• Leverages Brocade Fabric Vision technology’s powerful monitoring,management, and diagnostic tools to simplify administration, increase uptime,and reduce costs
• Helps pinpoint problems faster and simplify SAN configuration and management with Brocade Network Advisor
• Simplifies deployment with the Brocade EZSwitchSetup wizard and supports high-performance fabrics by using Brocade ClearLink D_Ports to identify optic and cable issues
• Maximizes availability with redundant, hot-pluggable components and non disruptive software upgrades
FAQ OF Brocade 6510 BR-6510-24-16G-R
Q1. What Brocade optical transceivber can be used on this Brocade 6510 switch?
A1: XBR-000141 XBR-000148 XBR-000193 etc Brocade 4G 8G 16G whole series optical modules can be used;
Q2. How does your company do regarding quality control?
A2: All our Brcoade switch were from formal channels, and we only sell original type products for the past 16 years;
Q3. What are the warranty of this switch?
A3: 1 year for repair;
