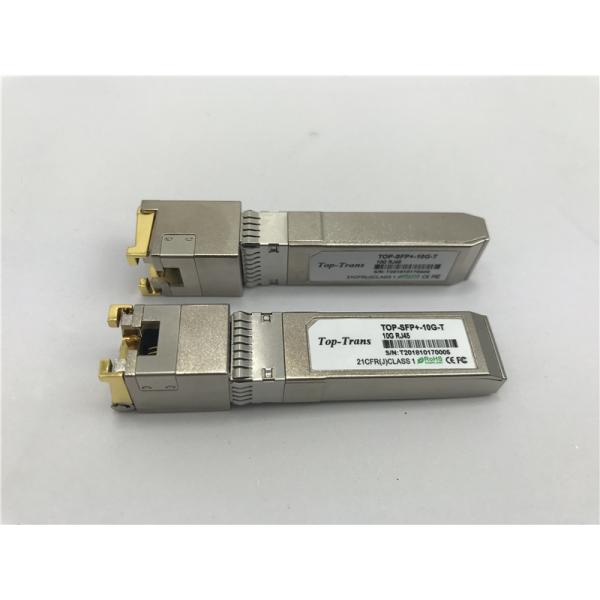

Mellanox MFM1T02A-T 10GBASE-T Compatible 10G Copper RJ45 SFP+ Transceiver

  • 1
  • 2

Brand Name : Top-Trans

Model Number : TSFP+-10G-T

Certification : ISO9001, ROHS, CE, FCC

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 3000pcs per month

Delivery Time : Negotiable

Packaging Details : SFP Blister Box + Anti-static Bag

Data rate : 11.3Gbps

Factor Form : SFP+

Function : 10Gigabit Ethernet SFP+ port to Copper RJ45

Max Transmission : 30M on Cat6/6a, 100M on Cat7

Temperature : 0°C~70°C Commercial

Weight : 25 grams

Power consumption : <1.2W

Compatible : Mellanox MFM1T02A-T

Connector : RJ45

Contact Now

Mellanox MFM1T02A-T 10GBASE-T Compatible 10G Copper RJ45 SFP+ Transceiver

Description Of Fiber Optic Transceiver

The Mellanox Compatible 10GBASE-T SFP+ Transceiver is a high-quality, cost-effective networking solution designed to deliver 10G Ethernet connectivity over copper cables. This transceiver is fully compatible with Mellanox networking equipment, ensuring seamless integration and outstanding performance.

With a reach of up to 30 meters over CAT6A cables and up to 100 meters over CAT7 cables, the Mellanox Compatible 10GBASE-T SFP+ Transceiver provides flexible and reliable connectivity for a variety of networking environments. It supports auto-negotiation, which allows it to automatically configure the link speed and duplex mode, and it also supports remote monitoring and diagnostics for easy network management.

This transceiver is designed to meet or exceed industry standards and specifications, ensuring compatibility with a wide range of networking equipment. It features advanced PHY technology, including energy-efficient Ethernet, link aggregation, and advanced cable diagnostics, to improve network performance and reliability.

Overall, the Mellanox Compatible 10GBASE-T SFP+ Transceiver is an excellent choice for organizations that require high-speed and reliable Ethernet connectivity over copper cables. With its compatibility with Mellanox equipment, flexible reach, and advanced features, this transceiver delivers outstanding performance and scalability for a wide range of networking environments.

Specification Of Fiber Optic Transceiver

Data Speed

11.3Gbps

Interface

SFP+ Port

Connector

RJ45

Transmission

30m on Cat6/6a, 100m on Cat7

Lower Power Dispation

1.2W max

ROHS compliant Yes, Support
Lead Free Yes, Support

Feature Of Fiber Optic Transceiver

  • Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T

  • Hot-pluggable SFP footprint

  • Compact RJ-45 connector assembly

  • RoHS compliant and lead-free

  • Single +3.3V power supply

  • 10 Gigabit Ethernet over Cat 6a cable

  • Ambient Operating temperature: 0°C to +65°C

Application of Fiber Optic Transceiver

  • 10Gigabit Copper Ethernet

  • Enterprise, Data Center, Security Network

​

SFP Transceiver List

Model Wavelength Distance Fiber Type Connector
TSFP-1.25G-MMD SX - 850nm 550m MMF LC Duplex
TSFP-1.25G-SMD LX - 1310NM 10km SMF LC Duplex
TSFP-1.25G-20D LH - 1310NM 20km SMF LC Duplex
TSFP-1.25G-40D EX - 1310nm 40km SMF LC Duplex
TSFP-1.25G-60D EX60, 1310nm 60km SMF LC Duplex
TSFP-1.25G-80D ZX, 1550nm 80km SMF LC Duplex
TSFP-1.25G-100D ZX100, 1550nm 100km SMF LC Duplex
TSFP-1.25G-120D ZX120, 1550nm 120km SMF LC Duplex
TSFP-1.25G-160D

ZX160, 1550nm

 160km SMF LC Duplex
TBD-1.25G-10A/B LX - 1310/1550nm BIDI 10km SMF LC Simplex
TBD-1.25G-20A/B LH - 1310/1550nm BIDI 20km SMF LC Simplex
TBD-1.25G-40A/B EX - 1310/1550nm BIDI 40km SMF LC Simplex
TBD-1.25G-60A/B EX60 - 1310/1550nm BIDI 60km SMF LC Simplex
TBD-1.25G-80A/B ZX - 1490/1550nm BIDI 80km SMF LC Simplex
TBD-1.25G-100A/B ZX100 - 1490/1550nm BIDI 100km SMF LC Simplex
TBD-1.25G-120A/B ZX120 - 1490/1550nm BIDI 120km SMF LC Simplex
TBD-1.25G-160A/B ZX160 - 1490/1550nm BIDI 160km SMF LC Simplex
TCM-1.25G-20-XX LX/LH - 1271-1611nm CWDM 10-20km SMF LC Duplex
TCM-1.25G-40-XX EX - 1271-1611nm CWDM 40km SMF LC Duplex
TCM-1.25G-80-XX ZX - 1271-1611nm CWDM 80km SMF LC Duplex
TCM-1.25G-120-XX ZX120 - 1271-1611nm CWDM 120km SMF LC Duplex
TCM-1.25G-160-XX ZX160 - 1271-1611nm CWDM 160km SMF LC Duplex
TDM-1.25G-40-XX EX - C Band ITU DWDM 40km SMF LC Duplex
TDM-1.25G-80-XX ZX - C Band ITU DWDM 80km SMF LC Duplex
TDM-1.25G-120-XX ZX120 - C Band ITU DWDM 120km SMF LC Duplex
TDM-1.25G-160-XX ZX160 - C Band ITU DWDM 160km SMF LC Duplex
155M/622M 850-1550nm/BIDI 0.55-160km MMF/SMF LC
2.5G 850-1550nm/BIDI/XWDM 0.3 -120km MMF/SMF LC
6.25G 850-1550nm 0.3 - 20km MMF/SMF LC
4.5G/8.5G 850-1550nm/CWDM 0.5 - 40km MMF/SMF LC

FAQ

  • Can I use your Copper RJ45 SFP with other RJ45 equipment?

Yes, It can interoperate with other RJ45 equipment via Cat6/Cat6a cable.

  • What's your optic warranty terms?

​

1 year free replace, 3 years free repairment for non-human made hardware defects
